Hortmasz
Hortmasz HGS500 Petrol Tiller, 196 cm³, with Accessories
SKU: FG-10724
Nachnahme · inkl. MwSt.
Technische Daten⌄
| Model | Hortmasz HGS 500 (HGS500 with accessories) |
| Engine manufacturer | Hortmasz Loncin |
| Motor type | 4-stroke, air-cooled, overhead-valve |
| Engine series | 168F |
| Engine displacement | 196 cc |
| Engine power | 3.65 kW |
| Oil sump capacity | 0,6 l |
| Fuel tank capacity | 3,6 l |
| Maximum engine speed | 3,600 rpm |
| Number of tine stars | 6 (3 + 3) |
| Tine star diameter | 340 mm |
| Working width | 32-62-85 cm |
| Working depth | 150 to 220 mm |
| Tine speed | 140 rpm |
| Forward/reverse gears | 2 / 1 |
| Tiller weight | 67 kg |
Über diesen Artikel
Hortmasz HGS 500 196 cm³ petrol tiller with accessories
Hortmasz HGS 500 is a large tiller with an engine of 196 cc and a gearbox offering: 2 forward gears i 1 reverse gear. Rubber wheels and a hitch convert it into a compact tractor compatible with a plough, ridger or lifter. The offer also includes the accessories listed in the title: plough, ridger, metal wheels and potato digger.
Working blades and working width

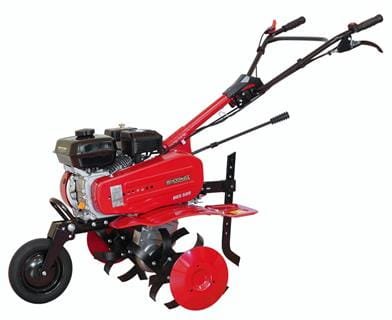

The photograph shows the machine with engine, handles, tines and side discs. The tines are made from wear-resistant boron steel. Working width can be set to 32-62-85 cm, with a working depth of 150 to 220 mm.
Included equipment

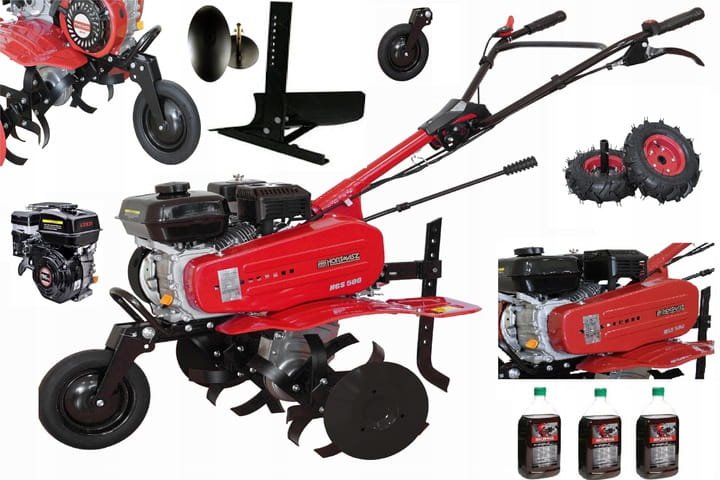

The group photograph shows the machine with attachments, wheels, plough and ridger components, and the engine. The title lists these accessories: plough, ridger, metal wheels and potato digger. Rubber wheels are standard equipment.
Gearbox
The geared transmission provides 2 forward and 1 reverse gear. Tine speed is 140 rpm.
196 cc engine with cast-iron liner
The Hortmasz Loncin 168F Series overhead-valve 4-stroke engine has a displacement of 196 cc and an output of 3.65 kW. The cast-iron cylinder liner supports reliable operation, and the engine is easy to start. The fuel tank holds 3,6 l, and the oil sump holds 0,6 l.
Technical specifications
| Model | Hortmasz HGS 500 (HGS500 with accessories) |
| Engine manufacturer | Hortmasz Loncin |
| Motor type | 4-stroke, air-cooled, overhead-valve |
| Engine series | 168F |
| Engine displacement | 196 cc |
| Engine power | 3.65 kW |
| Oil sump capacity | 0,6 l |
| Fuel tank capacity | 3,6 l |
| Maximum engine speed | 3,600 rpm |
| Number of tine stars | 6 (3 + 3) |
| Tine star diameter | 340 mm |
| Working width | 32-62-85 cm |
| Working depth | 150 to 220 mm |
| Tine speed | 140 rpm |
| Forward/reverse gears | 2 / 1 |
| Tiller weight | 67 kg |
Frequently asked questions
How many gears does the HGS 500 have?
Two forward gears and one reverse.
Which attachments is it compatible with?
A plough, ridger and lifter; the attachment hitch is standard equipment.
What working widths can be selected?
32, 62 or 85 cm.
How deep does the tiller work?
Working depth ranges from 150 to 220 mm.
Technische Daten
| Model | Hortmasz HGS 500 (HGS500 with accessories) |
| Engine manufacturer | Hortmasz Loncin |
| Motor type | 4-stroke, air-cooled, overhead-valve |
| Engine series | 168F |
| Engine displacement | 196 cc |
| Engine power | 3.65 kW |
| Oil sump capacity | 0,6 l |
| Fuel tank capacity | 3,6 l |
| Maximum engine speed | 3,600 rpm |
| Number of tine stars | 6 (3 + 3) |
| Tine star diameter | 340 mm |
| Working width | 32-62-85 cm |
| Working depth | 150 to 220 mm |
| Tine speed | 140 rpm |
| Forward/reverse gears | 2 / 1 |
| Tiller weight | 67 kg |
- Marke
- Hortmasz
- SKU
- FG-10724
